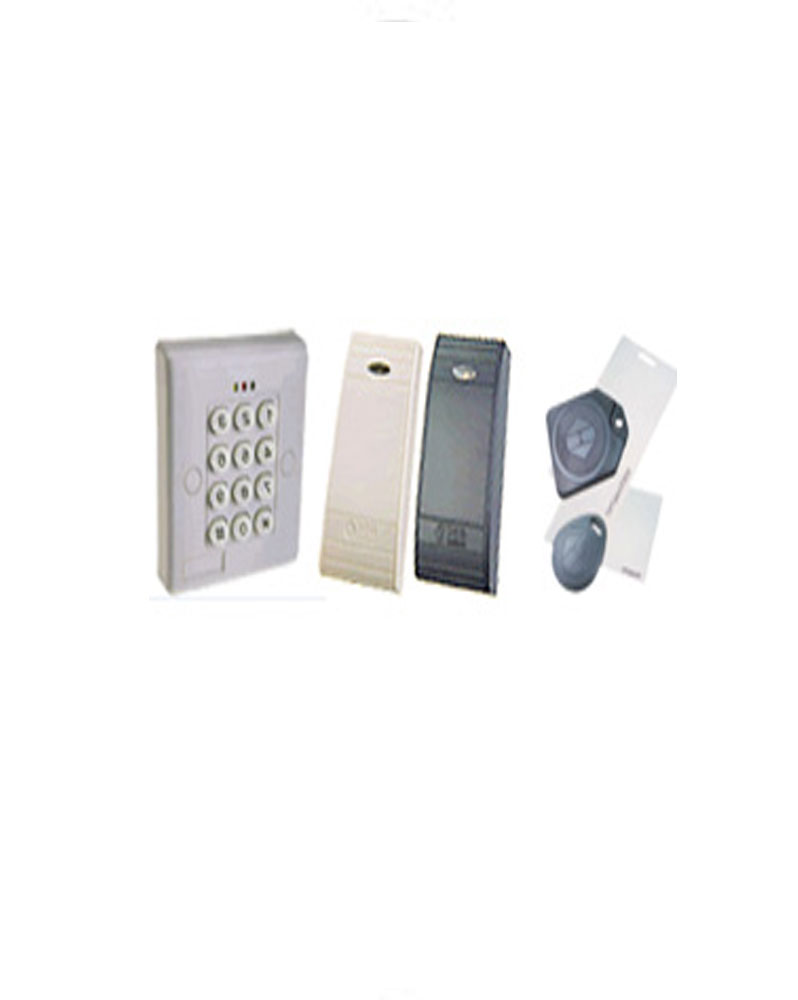

KeyProx Proximity Reader Unit

Quick Overview:

KeyProx is a standalone access control system offering a wide range of features that allows it to be used in both simple applications and in more complex and secure configurations.

Contact Sales Rep
  • 1000 Tags with individual PIN codes.
  • Last 3000 transactions with date and time stamp stored in controller memory
  • 3 levels of programming are provided: Installer, Supervisor and Administrator
  • 8 Security Schedules each with 5 time zones per day plus holiday access
  • Any date may be set as a holiday in effect giving 365 dates for Holiday Access
  • Security levels; PIN only, Card only, Card+PIN, Double card, Double PIN, Double Card+PIN, Denied. Anti-pass-back modes supported, None, Full APB, Timed APB, or One Access per time period
  • A Door Schedule allows doors to be Locked, Unlocked or Normal
  • Daylight Saving Time
  • PIN code length 1 to 6 digits
  • Timed Lockout after 3 wrong PIN codes.
  • All programming via keypad. - Optional PC Link allows programming from PC
  • Addition and deletion by tag number or by Memory Location Number
  • Cards may be deleted with the ProxLock Tag Simulator unit
  • Readers may be up to 100 meters from the Control Unit
  • Universal Duress Code allows access with alarm event
  • Forced door and door left open generate alarm event
  • Highly configurable door relay times accommodate all lock types
  • External alarm input
  • Remote Read-heads can be connected to the Keypad Readers.
  • All data stored in non-volatile memory - 10 year data retention without power
